Compatibility
Conventional & self-developing films.
Problem specific film holder
Karvi
Small in size.
Big on comfort.
Engineered for precise positioning and superior patient comfort in every dental X-ray procedure.
- Material
- PLA
- Use
- Single
Yellow · anterior
Red · posterior
Key features
What the holder is designed to do
Five things it does on every film, in every operatory.
Low cross infection
Cost-effective & disposable — a fresh holder for every patient.
Ergonomic design
Shaped to the arch form, for patient comfort.
Minimizes retakes
From improper positioning — the holder sets the film, not the fingers.
Wide compatibility
Adult & child dental X-ray films.
Precision positioning
Better imaging, better outcomes — comfort meets confidence, for you and your patients.
Colour coding
Three colours. No guesswork.
Each holder is moulded in the colour of the job it does, so the right one is identified by sight before it ever reaches the patient.
Yellow and red divide the mouth. Blue divides the workflow — it is the holder to reach for when the image is captured on a digital sensor or a PSP plate rather than on film.
Yellow
Anterior · Trismus · Endodontic
For anterior teeth, and for the awkward cases — restricted opening, and films taken during endodontic procedures.
Red
Posterior
For posterior teeth, where positioning is hardest to hold and a steady bite matters most.
Blue
Digital
For digital intraoral sensors and PSP plates, where the receptor is rigid, reusable and cabled rather than a disposable film packet.

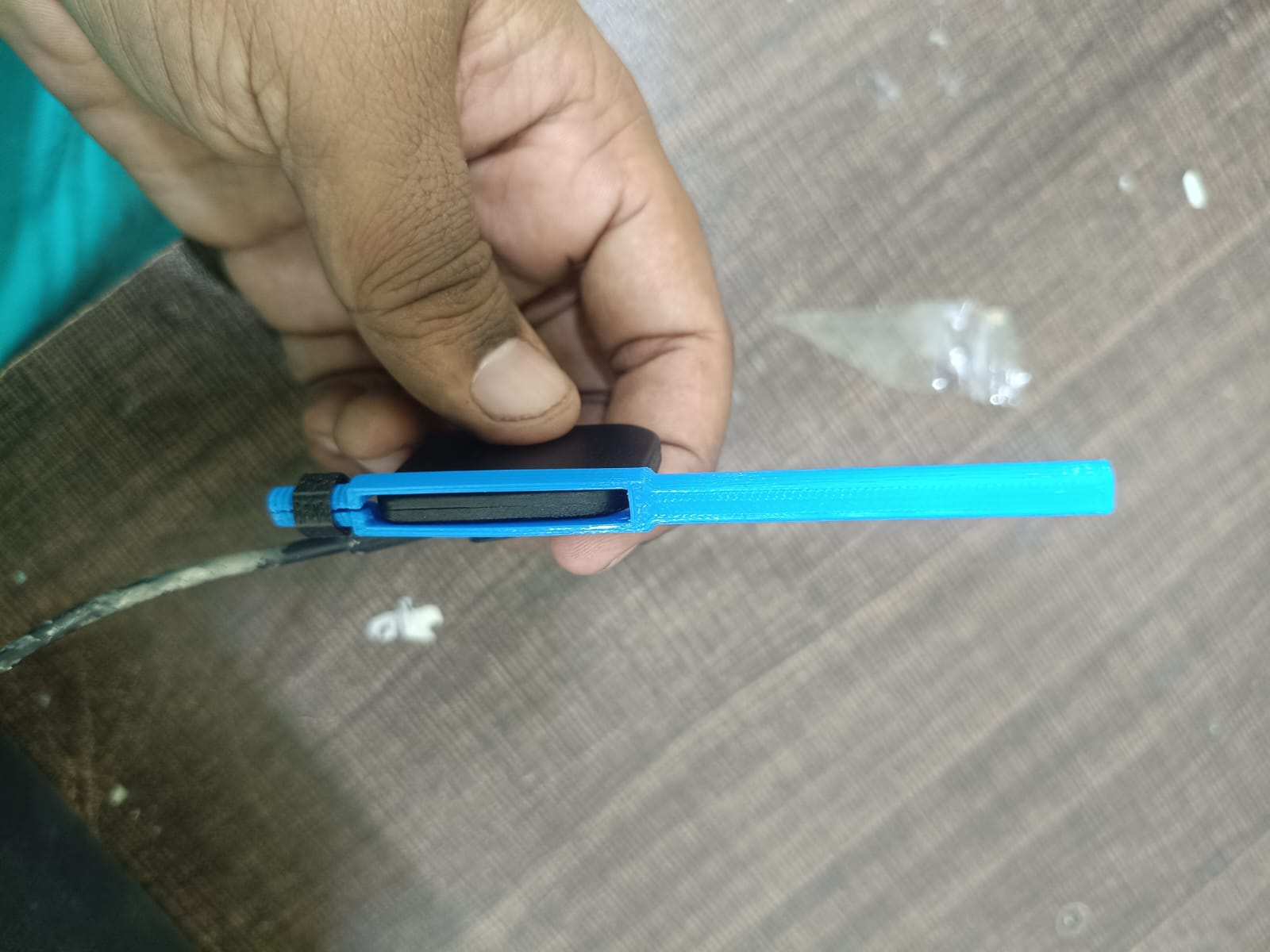

Blue · digital
The same geometry, opened out to take a sensor instead of a film packet.
A digital sensor is thicker than film and it trails a cable, so the slot and the bite block were reworked around it. Moulding it blue means the difference is settled at a glance, before the holder is out of the packet.
Development
Stage by stage, the holder was reshaped around the arch until the geometry stopped fighting the anatomy.
Every iteration was printed, placed and reviewed by clinicians before the next one was cut. The colour coding survived that process because it was the part that saved time in the operatory.
How to use
Three steps, any holder
Anterior / Trismus / Endodontic Holder (Yellow)
- 1 Place the film inside the holder.
- 2 Position the yellow holder in the mouth for anterior teeth, or in cases of trismus and during endodontic procedures.
- 3 Ask the patient to bite gently to hold the film in place.
Posterior Holder (Red)
- 1 Place the film inside the holder.
- 2 Position the red holder in the mouth for posterior teeth.
- 3 Ask the patient to bite gently to hold the film in place.
Digital Holder (Blue)
- 1 Seat the digital sensor or PSP plate in the holder, leaving the cable clear of the slot.
- 2 Position the blue holder in the mouth for the tooth being imaged.
- 3 Ask the patient to bite gently to hold the sensor in place.
Why choose our film holder?
Our dental X-ray film holder is engineered for easy positioning as per arch form, comfort, and durability. Whether for regular dental procedures or complex cases such as trismus, endodontic procedures, our holder promises greater positioning comfort.
Watch it work
The holder in use, start to finish
A full walkthrough on a transparent typodont: loading the film, positioning the yellow and red holders, and taking the exposure.
Demonstration on a dental typodont. No patient appears in this recording.
More from the team
Short clips recorded by UIRMEI Ventures with the holders in hand. This is the manufacturer talking about its own product, not independent review.
-
All three colour-coded holders in shot · 0:32 -
Speaking to camera · 0:34 -
Holders held to camera · 0:22
Published as received: unedited, with the speaker's own audio and no captions yet.
Compatibility
One holder.
Multiple imaging systems.
From conventional dental X-ray film to modern digital imaging, KARVI is designed to provide a simple and adaptable positioning solution for everyday dental radiography.
- Conventional & self-developing dental X-ray film
- PSP (phosphor storage) plates
- Digital intraoral sensors
- Adult & paediatric film sizes
Specifications
Technical detail
Technical specifications
| Material | Polylactic acid (PLA) |
|---|---|
| Sterilization | Disposable |
| Compatibility | Conventional & self-developing films |
| Configuration | Anterior, posterior, bitewing & pedo films |
| Colour coding | Anterior / trismus / endo — yellow · Posterior — red · Digital sensor / PSP — blue |

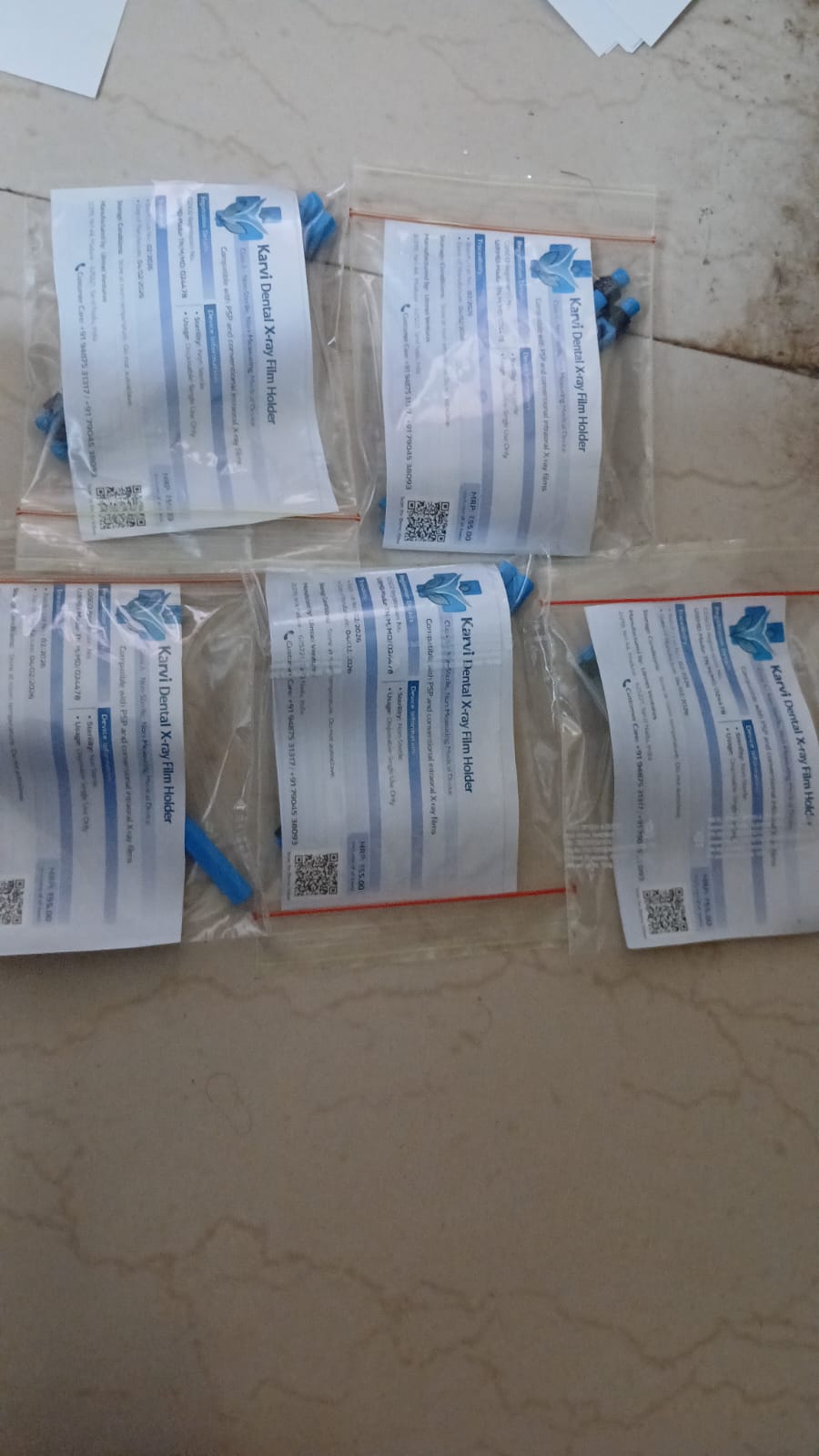

In the pack

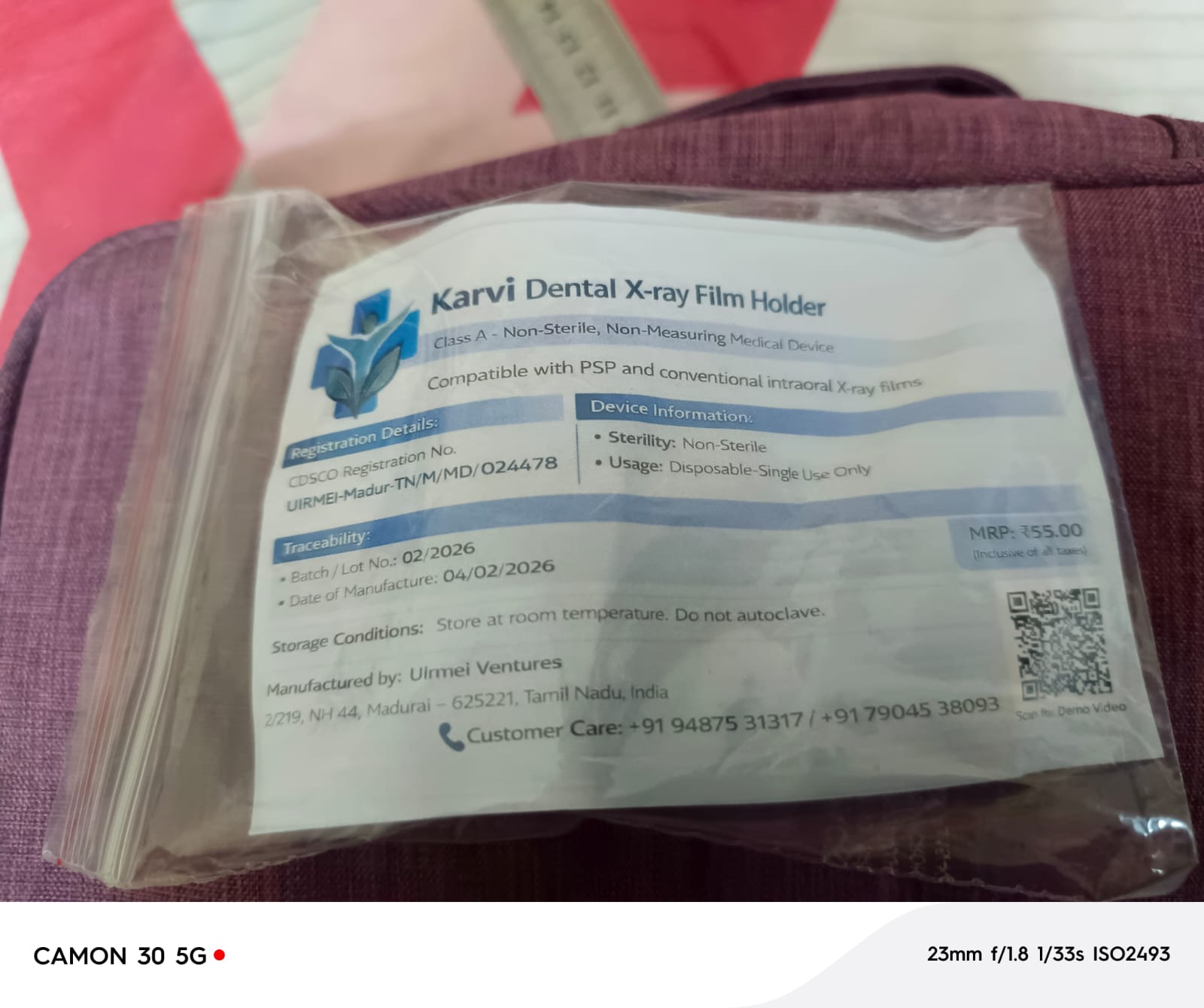

| Device class | Class A — non-sterile, non-measuring |
|---|---|
| Sterility | Non-sterile |
| Usage | Disposable — single use only |
| Storage | Store at room temperature. Do not autoclave. |
Regulatory
Registration and intellectual property
KARVI is intended for use by qualified dental professionals. Image quality depends on technique, equipment and patient anatomy.
Two designs are registered with the Indian Patent Office. A separate patent application is pending — both are set out below, and the registration certificates are published in full.
| CDSCO registration | UIRMEI-Madur-TN/M/MD/024478 |
|---|---|
| Device classification | Class A — non-sterile, non-measuring medical device |
| Registered design | 437663-001 “Oral Radiographic Film Holder”, class 24-01 — registered 18 November 2024 |
| Registered design | 454166-001 “Dental X-Ray Film Holder”, class 24-01 — registered 3 April 2025 |
| Patent status | Patent applied for — not yet granted |
| Patent application | 202541118188 Indian Patent Office, filed 27 November 2025 |
| Patent title | Bite Teeth Film Holder Assembly |
| Manufactured by | UIRMEI Ventures, 2/219, NH 44, Madurai – 625221, Tamil Nadu, India |

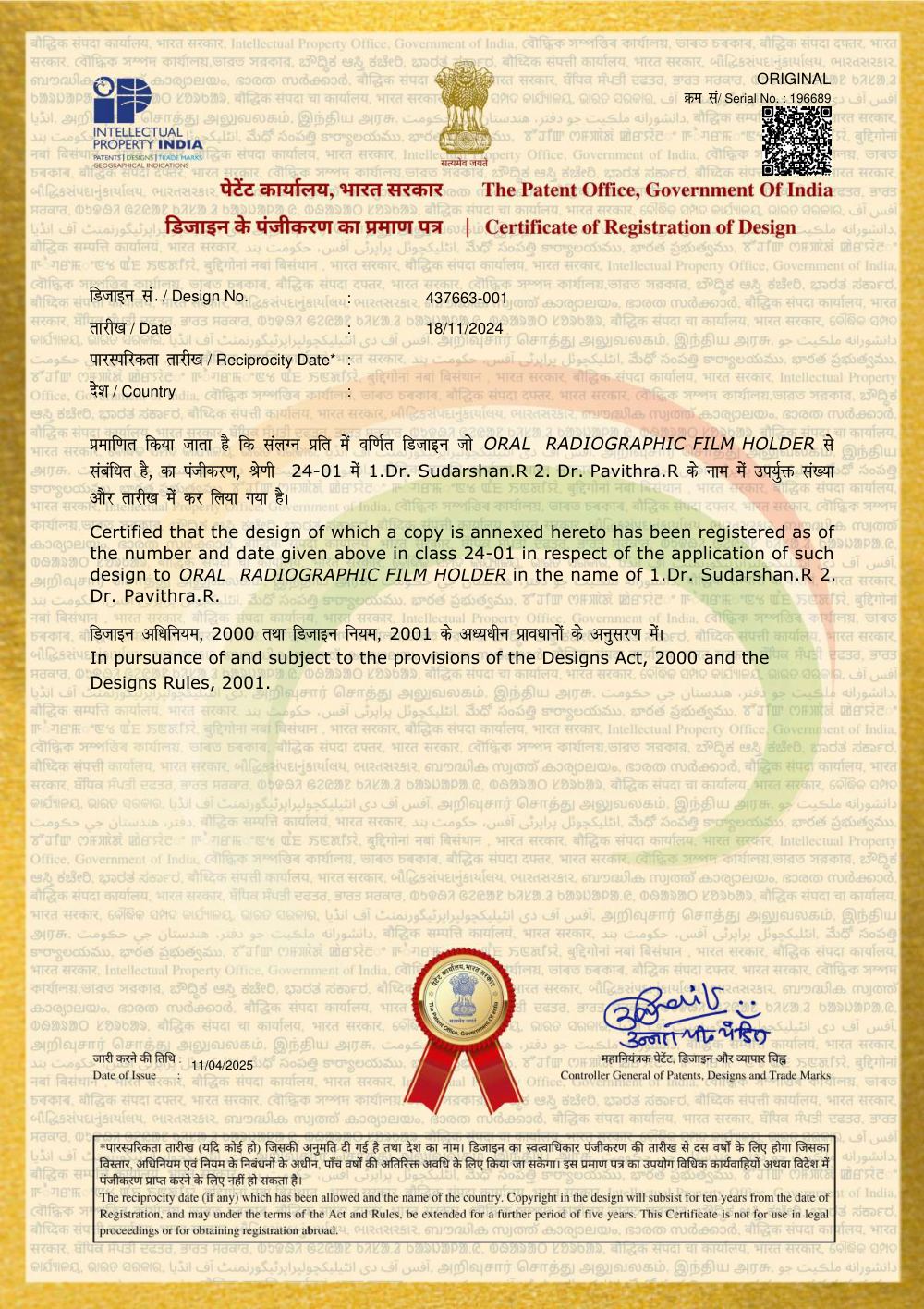

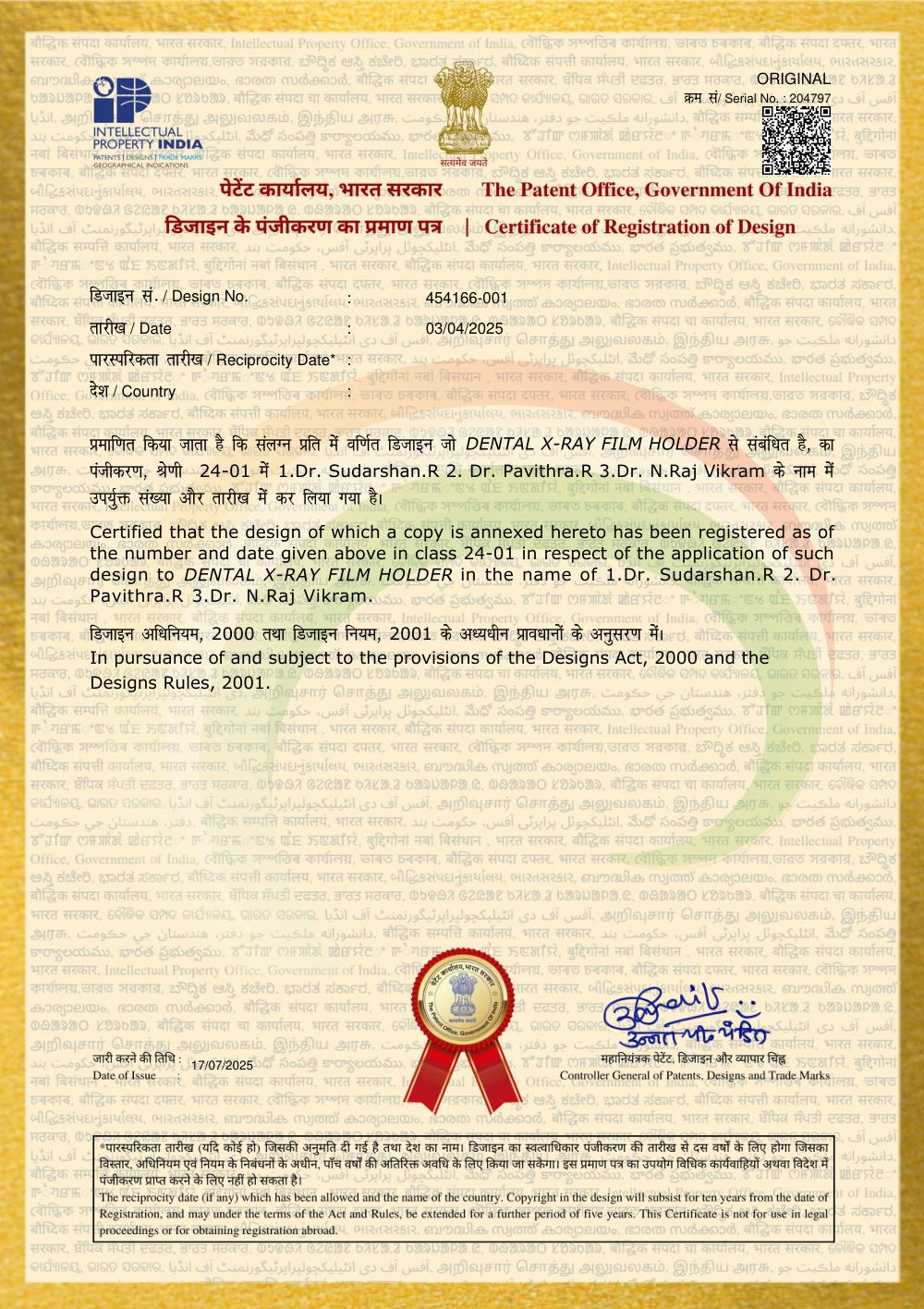

Registration certificates
Issued by the Patent Office, Government of India under the Designs Act, 2000. A design registration covers the visual appearance of the holder — its shape and configuration. It is not a patent and grants no rights over function or method.
Copyright in a registered design subsists for ten years from the date of registration and may be extended by a further five years. The separate patent application (202541118188, “Bite Teeth Film Holder Assembly”) remains pending — no patent has been granted.
Judge it in your own operatory
Request a pilot kit and assess KARVI on your own patients, with your own equipment.
